Page 28 - MED DIGITAL CATALOGUE

02 02
01

IV SET (IV INFUSION)

Highly transparent and visible upper 04
drip chamber
Adjustable flow rate roller
clamp with spike dock
15-micrometer in-line filter
Tubing length: 1.8 m
IV-INFUSION IV-INFUSION
Pressure resistance: 29
18G, 20G, 22G, 24G Infusion set psi (2 bar)
USP standards Class None-toxic Round synthetic spike with
VI compliance, ETO sterile integrated air vent and filter
thin-walled Catheters Disposable With flow rate control and
with PTFE, PUR, FEP Flexible tube latex connector
or ETFE Clear, ETO sterile Transparent drip chamber
Radio-opaque Y site with filter
Luer lock with
18G*1.5

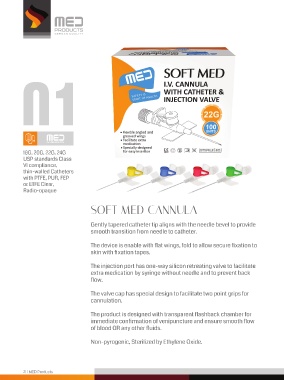

SOFT MED CANNULA

Gently tapered catheter tip aligns with the needle bevel to provide
smooth transition from needle to catheter.

The device is enable with flat wings, fold to allow secure fixation to 03
skin with fixation tapes.

The injection port has one-way silicon retreating valve to facilitate
extra medication by syringe without needle and to prevent back
flow. IV-INFUSION

Round synthetic spike
The valve cap has special design to facilitate two point grips for with integrated air vent
cannulation. and filter Transparent drip

BLOOD I.V. ADMINISTRATION SET (1’S) chamber with filter
The product is designed with transparent flashback chamber for Flexible tube
immediate confirmation of venipuncture and ensure smooth flow The tubing and chamber made of virgin grade medically treated With flow rate control and
of blood OR any other fluids. non-toxic, non irritant PVC material. The flow regulator and latex connector
piercing spike are made from medical friendly ABS compound to Y site, Luer lock with
Non-pyrogenic, Sterilized by Ethylene Oxide. offer superior performance. 18G*1.5
ETO sterile

21 | MED Products 22 | MED Products
